All regions are specified in "linear coordinates", not "pixel coordinates". More...

#include <QtPoint.qo.h>

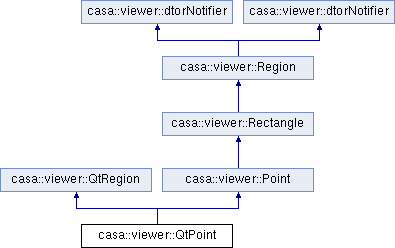

Inheritance diagram for casa::viewer::QtPoint:

Public Slots
void	adjustCorners (double, double, double, double)
Public Member Functions
	~QtPoint ()
const std::string	name () const
QtMouseToolNames::PointRegionSymbols	marker () const
bool	setMarker (QtMouseToolNames::PointRegionSymbols sym)
std::string	lineColor () const
std::string	centerColor () const
int	lineWidth () const
Region::LineStyle	lineStyle () const
std::string	textColor () const
std::string	textFont () const
int	textFontSize () const
int	textFontStyle () const
std::string	textValue () const
Region::TextPosition	textPosition () const
void	textPositionDelta (int &x, int &y) const
void	getCoordinatesAndUnits (Region::Coord &c, Region::Units &x_units, Region::Units &y_units, std::string &width_height_units) const
void	getPositionString (std::string &x, std::string &y, std::string &angle, double &bounding_width, double &bounding_height, Region::Coord coord=Region::DefaultCoord, Region::Units x_units=Region::DefaultUnits, Region::Units y_units=Region::DefaultUnits, const std::string &bounding_units="rad") const
bool	translateX (const std::string &x, const std::string &x_units, const std::string &coordsys)
bool	translateY (const std::string &y, const std::string &y_units, const std::string &coordsys)
bool	resizeX (const std::string &x, const std::string &x_units, const std::string &coordsys)
bool	resizeY (const std::string &y, const std::string &y_units, const std::string &coordsys)
int	numFrames () const
void	zRange (int &min, int &max) const
int	zIndex () const
bool	regionVisible () const
void	linearCenter (double &x, double &y) const
void	pixelCenter (double &x, double &y) const
	DISPLAY_PURE_VIRTUAL(region::linearCenter,);.
	QtPoint (QtRegionSourceKernel factory, WorldCanvas wc, double x, double y, QtMouseToolNames::PointRegionSymbols sym, bool hold_signals=false)
void	refresh ()
	qt-event -> QtRegion -> QtPoint -> Region::refresh( )
AnnotationBase *	annotation () const
void	selectedInCanvas ()
	indicates that the user has selected this point...
bool	weaklySelected () const
	is this region weakly or temporarily selected?
void	weaklySelect ()
void	weaklyUnselect ()
void	updateStateInfo (bool region_modified, Region::RegionChanges change)
	indicates that region movement requires that the statistcs be updated...
void	invalidateCenterInfo ()
	indicates that the center info is no longer valid
void	clearStatistics ()
void	setLabel (const std::string &l)
	set attributes when loading a casa region text file...
void	setLabelPosition (TextPosition pos)
void	setLabelDelta (const std::vector< int > &delta)
void	setFont (const std::string &font="", int font_size=-1, int font_style=0, const std::string &font_color="")
void	setLine (const std::string &line_color="", Region::LineStyle line_style=Region::SolidLine, unsigned int line_width=1)
void	setAnnotation (bool ann)
void	mark (bool set=true)
	functions added with the introduction of RegionToolManager and the unified selection and manipulation of the various region types...
bool	marked () const
bool	mark_toggle ()
int	markerScale () const
void	status (const std::string &msg, const std::string &type="info")
bool	markCenter () const
bool	skyComponent () const
void	output (ds9writer &out) const
void	emitUpdate ()
	called for existing regions when spectral profile tool is opened...
Protected Member Functions
std::list< RegionInfo > *	generate_dds_statistics ()
	--------------------==================== from old QtRegion ====================--------------------
ImageRegion *	get_image_region (DisplayData *dd) const
const std::list< Region * > &	get_selected_regions ()
size_t	selected_region_count ()
size_t	marked_region_count ()
virtual Region *	fetch_my_region ()
virtual void	fetch_region_details (Region::RegionTypes &type, std::vector< std::pair< int, int > > &pixel_pts, std::vector< std::pair< double, double > > &world_pts) const
std::list< RegionInfo > *	generate_dds_centers (bool skycomp)

Detailed Description

All regions are specified in "linear coordinates", not "pixel coordinates".

This is necessary because "linear coordinates" scale with zooming whereas "pixel coordinates" do not. Unfortunately, this means that coordinate transformation is required each time the region is drawn.

Key points:

regions are produced by a factory to permit the creation of gui specific regions

Definition at line 47 of file QtPoint.qo.h.

Constructor & Destructor Documentation

casa::viewer::QtPoint::~QtPoint ( )

casa::viewer::QtPoint::QtPoint	(	QtRegionSourceKernel *	factory,
		WorldCanvas *	wc,
		double	x,
		double	y,
		QtMouseToolNames::PointRegionSymbols	sym,
		bool	hold_signals = `false`
	)

Member Function Documentation

void casa::viewer::QtPoint::adjustCorners	(	double	,
		double	,
		double	,
		double
	)		`[slot]`

Reimplemented from casa::viewer::Region.

AnnotationBase* casa::viewer::QtPoint::annotation ( ) const [inline]

Reimplemented from casa::viewer::Point.

Definition at line 100 of file QtPoint.qo.h.

std::string casa::viewer::QtPoint::centerColor ( ) const [inline]

Reimplemented from casa::viewer::QtRegion.

Definition at line 57 of file QtPoint.qo.h.

void casa::viewer::QtPoint::clearStatistics ( ) [inline]

Reimplemented from casa::viewer::QtRegion.

Definition at line 115 of file QtPoint.qo.h.

void casa::viewer::QtPoint::emitUpdate ( ) [inline]

called for existing regions when spectral profile tool is opened...

Reimplemented from casa::viewer::QtRegion.

Definition at line 142 of file QtPoint.qo.h.

virtual Region* casa::viewer::QtPoint::fetch_my_region ( ) [inline, protected, virtual]

Definition at line 154 of file QtPoint.qo.h.

virtual void casa::viewer::QtPoint::fetch_region_details	(	Region::RegionTypes &	type,
		std::vector< std::pair< int, int > > &	pixel_pts,
		std::vector< std::pair< double, double > > &	world_pts
	)		const `[inline, protected, virtual]`

Definition at line 156 of file QtPoint.qo.h.

std::list<RegionInfo>* casa::viewer::QtPoint::generate_dds_centers ( bool skycomp ) [inline, protected]

Definition at line 159 of file QtPoint.qo.h.

References casa::viewer::Point::generate_dds_centers().

std::list<RegionInfo>* casa::viewer::QtPoint::generate_dds_statistics ( ) [inline, protected, virtual]

--------------------==================== from old QtRegion ====================--------------------

Reimplemented from casa::viewer::Region.

Definition at line 149 of file QtPoint.qo.h.

ImageRegion* casa::viewer::QtPoint::get_image_region ( DisplayData * dd ) const [inline, protected, virtual]

Implements casa::viewer::QtRegion.

Definition at line 150 of file QtPoint.qo.h.

const std::list<Region*>& casa::viewer::QtPoint::get_selected_regions ( ) [inline, protected, virtual]

Implements casa::viewer::Region.

Definition at line 151 of file QtPoint.qo.h.

void casa::viewer::QtPoint::getCoordinatesAndUnits	(	Region::Coord &	c,
		Region::Units &	x_units,
		Region::Units &	y_units,
		std::string &	width_height_units
	)		const `[inline]`

Reimplemented from casa::viewer::Region.

Definition at line 69 of file QtPoint.qo.h.

void casa::viewer::QtPoint::getPositionString	(	std::string &	x,
		std::string &	y,
		std::string &	angle,
		double &	bounding_width,
		double &	bounding_height,
		Region::Coord	coord = `Region::DefaultCoord`,
		Region::Units	x_units = `Region::DefaultUnits`,
		Region::Units	y_units = `Region::DefaultUnits`,
		const std::string &	bounding_units = `"rad"`
	)		const `[inline]`

Reimplemented from casa::viewer::Region.

Definition at line 71 of file QtPoint.qo.h.

void casa::viewer::QtPoint::invalidateCenterInfo ( ) [inline]

indicates that the center info is no longer valid

Reimplemented from casa::viewer::QtRegion.

Definition at line 113 of file QtPoint.qo.h.

void casa::viewer::QtPoint::linearCenter	(	double &	x,
		double &	y
	)		const `[inline]`

Reimplemented from casa::viewer::Rectangle.

Definition at line 93 of file QtPoint.qo.h.

std::string casa::viewer::QtPoint::lineColor ( ) const [inline]

Reimplemented from casa::viewer::QtRegion.

Definition at line 56 of file QtPoint.qo.h.

Region::LineStyle casa::viewer::QtPoint::lineStyle ( ) const [inline]

Reimplemented from casa::viewer::QtRegion.

Definition at line 59 of file QtPoint.qo.h.

int casa::viewer::QtPoint::lineWidth ( ) const [inline]

Reimplemented from casa::viewer::QtRegion.

Definition at line 58 of file QtPoint.qo.h.

void casa::viewer::QtPoint::mark ( bool set = true ) [inline]

functions added with the introduction of RegionToolManager and the unified selection and manipulation of the various region types...

Reimplemented from casa::viewer::QtRegion.

Definition at line 128 of file QtPoint.qo.h.

bool casa::viewer::QtPoint::mark_toggle ( ) [inline]

Reimplemented from casa::viewer::QtRegion.

Definition at line 130 of file QtPoint.qo.h.

bool casa::viewer::QtPoint::markCenter ( ) const [inline]

Reimplemented from casa::viewer::QtRegion.

Definition at line 136 of file QtPoint.qo.h.

bool casa::viewer::QtPoint::marked ( ) const [inline]

Reimplemented from casa::viewer::QtRegion.

Definition at line 129 of file QtPoint.qo.h.

size_t casa::viewer::QtPoint::marked_region_count ( ) [inline, protected]

Reimplemented from casa::viewer::QtRegion.

Definition at line 153 of file QtPoint.qo.h.

QtMouseToolNames::PointRegionSymbols casa::viewer::QtPoint::marker ( ) const [inline, virtual]

Reimplemented from casa::viewer::QtRegion.

Definition at line 53 of file QtPoint.qo.h.

References casa::viewer::Point::marker_.

int casa::viewer::QtPoint::markerScale ( ) const [inline]

Reimplemented from casa::viewer::QtRegion.

Definition at line 132 of file QtPoint.qo.h.

const std::string casa::viewer::QtPoint::name ( ) const [inline]

Reimplemented from casa::viewer::QtRegion.

Definition at line 52 of file QtPoint.qo.h.

int casa::viewer::QtPoint::numFrames ( ) const [inline]

Reimplemented from casa::viewer::QtRegion.

Definition at line 88 of file QtPoint.qo.h.

void casa::viewer::QtPoint::output ( ds9writer & out ) const [virtual]

Implements casa::viewer::QtRegion.

void casa::viewer::QtPoint::pixelCenter	(	double &	,
		double &
	)		const `[inline, virtual]`

DISPLAY_PURE_VIRTUAL(region::linearCenter,);.

Implements casa::viewer::QtRegion.

Definition at line 94 of file QtPoint.qo.h.

void casa::viewer::QtPoint::refresh ( ) [inline]

qt-event -> QtRegion -> QtPoint -> Region::refresh( )

Reimplemented from casa::viewer::Region.

Definition at line 99 of file QtPoint.qo.h.

bool casa::viewer::QtPoint::regionVisible ( ) const [inline]

Reimplemented from casa::viewer::Region.

Definition at line 92 of file QtPoint.qo.h.

bool casa::viewer::QtPoint::resizeX	(	const std::string &	x,
		const std::string &	x_units,
		const std::string &	coordsys
	)		`[inline, virtual]`

Implements casa::viewer::QtRegion.

Definition at line 83 of file QtPoint.qo.h.

bool casa::viewer::QtPoint::resizeY	(	const std::string &	y,
		const std::string &	y_units,
		const std::string &	coordsys
	)		`[inline, virtual]`

Implements casa::viewer::QtRegion.

Definition at line 85 of file QtPoint.qo.h.

size_t casa::viewer::QtPoint::selected_region_count ( ) [inline, protected]

Reimplemented from casa::viewer::QtRegion.

Definition at line 152 of file QtPoint.qo.h.

void casa::viewer::QtPoint::selectedInCanvas ( ) [inline, virtual]

indicates that the user has selected this point...

Reimplemented from casa::viewer::Region.

Definition at line 103 of file QtPoint.qo.h.

void casa::viewer::QtPoint::setAnnotation ( bool ann ) [inline, virtual]

Reimplemented from casa::viewer::QtRegion.

Definition at line 124 of file QtPoint.qo.h.

void casa::viewer::QtPoint::setFont	(	const std::string &	font = `""`,
		int	font_size = `-1`,
		int	font_style = `0`,
		const std::string &	font_color = `""`
	)		`[inline, virtual]`

Reimplemented from casa::viewer::QtRegion.

Definition at line 120 of file QtPoint.qo.h.

void casa::viewer::QtPoint::setLabel ( const std::string & l ) [inline, virtual]

set attributes when loading a casa region text file...

Reimplemented from casa::viewer::QtRegion.

Definition at line 117 of file QtPoint.qo.h.

void casa::viewer::QtPoint::setLabelDelta ( const std::vector< int > & delta ) [inline]

Reimplemented from casa::viewer::QtRegion.

Definition at line 119 of file QtPoint.qo.h.

void casa::viewer::QtPoint::setLabelPosition ( TextPosition pos ) [inline, virtual]

Implements casa::viewer::Region.

Definition at line 118 of file QtPoint.qo.h.

void casa::viewer::QtPoint::setLine	(	const std::string &	line_color = `""`,
		Region::LineStyle	line_style = `Region::SolidLine`,
		unsigned int	line_width = `1`
	)		`[inline, virtual]`
