All regions are specified in "linear coordinates", not "pixel coordinates". More...

#include <QtPolygon.qo.h>

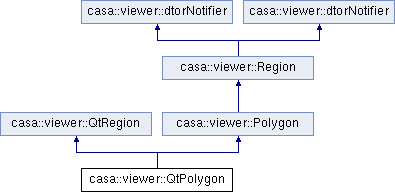

Inheritance diagram for casa::viewer::QtPolygon:

Public Member Functions
const std::string	name () const
std::string	lineColor () const
std::string	centerColor () const
int	lineWidth () const
Region::LineStyle	lineStyle () const
std::string	textColor () const
std::string	textFont () const
int	textFontSize () const
int	textFontStyle () const
std::string	textValue () const
Region::TextPosition	textPosition () const
void	textPositionDelta (int &x, int &y) const
void	getCoordinatesAndUnits (Region::Coord &c, Region::Units &x_units, Region::Units &y_units, std::string &width_height_units) const
void	getPositionString (std::string &x, std::string &y, std::string &angle, double &bounding_width, double &bounding_height, Region::Coord coord=Region::DefaultCoord, Region::Units x_units=Region::DefaultUnits, Region::Units y_units=Region::DefaultUnits, const std::string &bounding_units="rad") const
bool	translateX (const std::string &x, const std::string &x_units, const std::string &coordsys)
bool	translateY (const std::string &y, const std::string &y_units, const std::string &coordsys)
bool	resizeX (const std::string &x, const std::string &x_units, const std::string &coordsys)
bool	resizeY (const std::string &y, const std::string &y_units, const std::string &coordsys)
int	numFrames () const
void	zRange (int &min, int &max) const
int	zIndex () const
void	updateStateInfo (bool region_modified, RegionChanges change)
	indicates that region movement requires that the statistcs be updated...
void	invalidateCenterInfo ()
	indicates that the center info is no longer valid
void	clearStatistics ()
	QtPolygon (QtRegionSourceKernel factory, WorldCanvas wc, double x1, double y1, bool hold_signals=false)
	QtPolygon (QtRegionSourceKernel factory, WorldCanvas wc, const std::vector< std::pair< double, double > > &pts, bool hold_signals=false)
bool	regionVisible () const
void	linearCenter (double &x, double &y) const
void	pixelCenter (double &x, double &y) const
void	refresh ()
	qt-event -> QtRegion -> QtPolygon -> Region::refresh( )
AnnotationBase *	annotation () const
void	polygonComplete ()
	called when polygon region is completely specified...
void	selectedInCanvas ()
	indicates that the user has selected this rectangle...
bool	weaklySelected () const
	is this region weakly or temporarily selected?
void	weaklySelect ()
void	weaklyUnselect ()
void	setLabel (const std::string &l)
	set attributes when loading a casa region text file...
void	setLabelPosition (TextPosition pos)
void	setLabelDelta (const std::vector< int > &delta)
void	setFont (const std::string &font="", int font_size=-1, int font_style=0, const std::string &font_color="")
void	setLine (const std::string &line_color="", Region::LineStyle line_style=SolidLine, unsigned int line_width=1)
void	setAnnotation (bool ann)
void	mark (bool set=true)
	functions added with the introduction of RegionToolManager and the unified selection and manipulation of the various region types...
bool	marked () const
bool	mark_toggle ()
void	status (const std::string &msg, const std::string &type="info")
bool	markCenter () const
bool	skyComponent () const
void	output (ds9writer &out) const
void	emitUpdate ()
	called for existing regions when spectral profile tool is opened...
Protected Member Functions
std::list< RegionInfo > *	generate_dds_statistics ()
	--------------------==================== from old QtRegion ====================--------------------
ImageRegion *	get_image_region (DisplayData *dd) const
const std::list< Region * > &	get_selected_regions ()
size_t	selected_region_count ()
size_t	marked_region_count ()
virtual Region *	fetch_my_region ()
virtual void	fetch_region_details (RegionTypes &type, std::vector< std::pair< int, int > > &pixel_pts, std::vector< std::pair< double, double > > &world_pts) const
std::list< RegionInfo > *	generate_dds_centers ()

Detailed Description

All regions are specified in "linear coordinates", not "pixel coordinates".

This is necessary because "linear coordinates" scale with zooming whereas "pixel coordinates" do not. Unfortunately, this means that coordinate transformation is required each time the region is drawn.

Key points:

regions are produced by a factory to permit the creation of gui specific regions

Definition at line 46 of file QtPolygon.qo.h.

Constructor & Destructor Documentation

casa::viewer::QtPolygon::QtPolygon	(	QtRegionSourceKernel *	factory,
		WorldCanvas *	wc,
		double	x1,
		double	y1,
		bool	hold_signals = `false`
	)

casa::viewer::QtPolygon::QtPolygon	(	QtRegionSourceKernel *	factory,
		WorldCanvas *	wc,
		const std::vector< std::pair< double, double > > &	pts,
		bool	hold_signals = `false`
	)

Member Function Documentation

AnnotationBase* casa::viewer::QtPolygon::annotation ( ) const [inline]

Reimplemented from casa::viewer::Polygon.

Definition at line 105 of file QtPolygon.qo.h.

std::string casa::viewer::QtPolygon::centerColor ( ) const [inline]

Reimplemented from casa::viewer::QtRegion.

Definition at line 53 of file QtPolygon.qo.h.

void casa::viewer::QtPolygon::clearStatistics ( ) [inline]

Reimplemented from casa::viewer::QtRegion.

Definition at line 94 of file QtPolygon.qo.h.

void casa::viewer::QtPolygon::emitUpdate ( ) [inline]

called for existing regions when spectral profile tool is opened...

Reimplemented from casa::viewer::QtRegion.

Definition at line 140 of file QtPolygon.qo.h.

virtual Region* casa::viewer::QtPolygon::fetch_my_region ( ) [inline, protected, virtual]

Definition at line 148 of file QtPolygon.qo.h.

virtual void casa::viewer::QtPolygon::fetch_region_details	(	RegionTypes &	type,
		std::vector< std::pair< int, int > > &	pixel_pts,
		std::vector< std::pair< double, double > > &	world_pts
	)		const `[inline, protected, virtual]`

Definition at line 149 of file QtPolygon.qo.h.

std::list<RegionInfo>* casa::viewer::QtPolygon::generate_dds_centers ( ) [inline, protected, virtual]

Reimplemented from casa::viewer::Polygon.

Definition at line 152 of file QtPolygon.qo.h.

std::list<RegionInfo>* casa::viewer::QtPolygon::generate_dds_statistics ( ) [inline, protected, virtual]

--------------------==================== from old QtRegion ====================--------------------

Reimplemented from casa::viewer::Region.

Definition at line 143 of file QtPolygon.qo.h.

ImageRegion* casa::viewer::QtPolygon::get_image_region ( DisplayData * dd ) const [inline, protected]

Reimplemented from casa::viewer::Polygon.

Definition at line 144 of file QtPolygon.qo.h.

const std::list<Region*>& casa::viewer::QtPolygon::get_selected_regions ( ) [inline, protected, virtual]

Implements casa::viewer::Region.

Definition at line 145 of file QtPolygon.qo.h.

void casa::viewer::QtPolygon::getCoordinatesAndUnits	(	Region::Coord &	c,
		Region::Units &	x_units,
		Region::Units &	y_units,
		std::string &	width_height_units
	)		const `[inline]`

Reimplemented from casa::viewer::Region.

Definition at line 65 of file QtPolygon.qo.h.

void casa::viewer::QtPolygon::getPositionString	(	std::string &	x,
		std::string &	y,
		std::string &	angle,
		double &	bounding_width,
		double &	bounding_height,
		Region::Coord	coord = `Region::DefaultCoord`,
		Region::Units	x_units = `Region::DefaultUnits`,
		Region::Units	y_units = `Region::DefaultUnits`,
		const std::string &	bounding_units = `"rad"`
	)		const `[inline]`

Reimplemented from casa::viewer::Region.

Definition at line 67 of file QtPolygon.qo.h.

void casa::viewer::QtPolygon::invalidateCenterInfo ( ) [inline]

indicates that the center info is no longer valid

Reimplemented from casa::viewer::QtRegion.

Definition at line 92 of file QtPolygon.qo.h.

void casa::viewer::QtPolygon::linearCenter	(	double &	x,
		double &	y
	)		const `[inline]`

Reimplemented from casa::viewer::Polygon.

Definition at line 100 of file QtPolygon.qo.h.

std::string casa::viewer::QtPolygon::lineColor ( ) const [inline]

Reimplemented from casa::viewer::QtRegion.

Definition at line 52 of file QtPolygon.qo.h.

Region::LineStyle casa::viewer::QtPolygon::lineStyle ( ) const [inline]

Reimplemented from casa::viewer::QtRegion.

Definition at line 55 of file QtPolygon.qo.h.

int casa::viewer::QtPolygon::lineWidth ( ) const [inline]

Reimplemented from casa::viewer::QtRegion.

Definition at line 54 of file QtPolygon.qo.h.

void casa::viewer::QtPolygon::mark ( bool set = true ) [inline]

functions added with the introduction of RegionToolManager and the unified selection and manipulation of the various region types...

Reimplemented from casa::viewer::QtRegion.

Definition at line 128 of file QtPolygon.qo.h.

bool casa::viewer::QtPolygon::mark_toggle ( ) [inline]

Reimplemented from casa::viewer::QtRegion.

Definition at line 130 of file QtPolygon.qo.h.

bool casa::viewer::QtPolygon::markCenter ( ) const [inline]

Reimplemented from casa::viewer::QtRegion.

Definition at line 134 of file QtPolygon.qo.h.

bool casa::viewer::QtPolygon::marked ( ) const [inline]

Reimplemented from casa::viewer::QtRegion.

Definition at line 129 of file QtPolygon.qo.h.

size_t casa::viewer::QtPolygon::marked_region_count ( ) [inline, protected]

Reimplemented from casa::viewer::QtRegion.

Definition at line 147 of file QtPolygon.qo.h.

const std::string casa::viewer::QtPolygon::name ( ) const [inline]

Reimplemented from casa::viewer::QtRegion.

Definition at line 50 of file QtPolygon.qo.h.

int casa::viewer::QtPolygon::numFrames ( ) const [inline]

Reimplemented from casa::viewer::QtRegion.

Definition at line 84 of file QtPolygon.qo.h.

void casa::viewer::QtPolygon::output ( ds9writer & out ) const

Reimplemented from casa::viewer::Polygon.

void casa::viewer::QtPolygon::pixelCenter	(	double &	x,
		double &	y
	)		const `[inline, virtual]`

Reimplemented from casa::viewer::Polygon.

Definition at line 101 of file QtPolygon.qo.h.

void casa::viewer::QtPolygon::polygonComplete ( )

called when polygon region is completely specified...

used to trigger related region events, e.g. displaying spectra...

Reimplemented from casa::viewer::Polygon.

void casa::viewer::QtPolygon::refresh ( ) [inline]

qt-event -> QtRegion -> QtPolygon -> Region::refresh( )

Reimplemented from casa::viewer::Region.

Definition at line 104 of file QtPolygon.qo.h.

bool casa::viewer::QtPolygon::regionVisible ( ) const [inline]

Reimplemented from casa::viewer::Region.

Definition at line 99 of file QtPolygon.qo.h.

bool casa::viewer::QtPolygon::resizeX	(	const std::string &	x,
		const std::string &	x_units,
		const std::string &	coordsys
	)		`[inline, virtual]`

Implements casa::viewer::QtRegion.

Definition at line 79 of file QtPolygon.qo.h.

bool casa::viewer::QtPolygon::resizeY	(	const std::string &	y,
		const std::string &	y_units,
		const std::string &	coordsys
	)		`[inline, virtual]`

Implements casa::viewer::QtRegion.

Definition at line 81 of file QtPolygon.qo.h.

size_t casa::viewer::QtPolygon::selected_region_count ( ) [inline, protected]

Reimplemented from casa::viewer::QtRegion.

Definition at line 146 of file QtPolygon.qo.h.

void casa::viewer::QtPolygon::selectedInCanvas ( ) [inline, virtual]

indicates that the user has selected this rectangle...

Reimplemented from casa::viewer::Region.

Definition at line 111 of file QtPolygon.qo.h.

void casa::viewer::QtPolygon::setAnnotation ( bool ann ) [inline, virtual]

Reimplemented from casa::viewer::QtRegion.

Definition at line 124 of file QtPolygon.qo.h.

void casa::viewer::QtPolygon::setFont	(	const std::string &	font = `""`,
		int	font_size = `-1`,
		int	font_style = `0`,
		const std::string &	font_color = `""`
	)		`[inline, virtual]`

Reimplemented from casa::viewer::QtRegion.

Definition at line 120 of file QtPolygon.qo.h.

void casa::viewer::QtPolygon::setLabel ( const std::string & l ) [inline, virtual]

set attributes when loading a casa region text file...

Reimplemented from casa::viewer::QtRegion.

Definition at line 117 of file QtPolygon.qo.h.

void casa::viewer::QtPolygon::setLabelDelta ( const std::vector< int > & delta ) [inline]

Reimplemented from casa::viewer::QtRegion.

Definition at line 119 of file QtPolygon.qo.h.

void casa::viewer::QtPolygon::setLabelPosition ( TextPosition pos ) [inline, virtual]

Implements casa::viewer::Region.

Definition at line 118 of file QtPolygon.qo.h.

void casa::viewer::QtPolygon::setLine	(	const std::string &	line_color = `""`,
		Region::LineStyle	line_style = `SolidLine`,
		unsigned int	line_width = `1`
	)		`[inline, virtual]`
