All regions are specified in "linear coordinates", not "pixel coordinates". More...

#include <QtRectangle.qo.h>

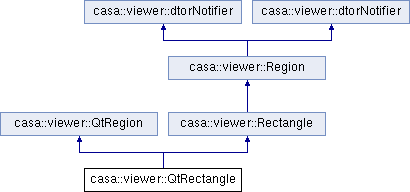

Inheritance diagram for casa::viewer::QtRectangle:

Public Slots
void	adjustCorners (double, double, double, double)
Public Member Functions
	~QtRectangle ()
const std::string	name () const
std::string	lineColor () const
std::string	centerColor () const
int	lineWidth () const
Region::LineStyle	lineStyle () const
std::string	textColor () const
std::string	textFont () const
int	textFontSize () const
int	textFontStyle () const
std::string	textValue () const
Region::TextPosition	textPosition () const
void	textPositionDelta (int &x, int &y) const
void	getCoordinatesAndUnits (Region::Coord &c, Region::Units &x_units, Region::Units &y_units, std::string &width_height_units) const
void	getPositionString (std::string &x, std::string &y, std::string &angle, double &bounding_width, double &bounding_height, Region::Coord coord=Region::DefaultCoord, Region::Units x_units=Region::DefaultUnits, Region::Units y_units=Region::DefaultUnits, const std::string &bounding_units="rad") const
bool	translateX (const std::string &x, const std::string &x_units, const std::string &coordsys)
bool	translateY (const std::string &y, const std::string &y_units, const std::string &coordsys)
bool	resizeX (const std::string &x, const std::string &x_units, const std::string &coordsys)
bool	resizeY (const std::string &y, const std::string &y_units, const std::string &coordsys)
int	numFrames () const
void	zRange (int &min, int &max) const
int	zIndex () const
bool	regionVisible () const
void	linearCenter (double &x, double &y) const
void	pixelCenter (double &x, double &y) const
	DISPLAY_PURE_VIRTUAL(region::linearCenter,);.
	QtRectangle (QtRegionSourceKernel factory, WorldCanvas wc, double blc_x, double blc_y, double trc_x, double trc_y, bool hold_signals=false)
void	refresh ()
	qt-event -> QtRegion -> QtRectangle -> Region::refresh( )
AnnotationBase *	annotation () const
void	selectedInCanvas ()
	indicates that the user has selected this rectangle...
bool	weaklySelected () const
	is this region weakly or temporarily selected?
void	weaklySelect ()
void	weaklyUnselect ()
void	updateStateInfo (bool region_modified, Region::RegionChanges change)
	indicates that region movement requires that the statistcs be updated...
void	invalidateCenterInfo ()
	indicates that the center info is no longer valid
void	clearStatistics ()
void	setLabel (const std::string &l)
	set attributes when loading a casa region text file...
void	setLabelPosition (TextPosition pos)
void	setLabelDelta (const std::vector< int > &delta)
void	setFont (const std::string &font="", int font_size=-1, int font_style=0, const std::string &font_color="")
void	setLine (const std::string &line_color="", Region::LineStyle line_style=SolidLine, unsigned int line_width=1)
void	setAnnotation (bool ann)
void	mark (bool set=true)
	functions added with the introduction of RegionToolManager and the unified selection and manipulation of the various region types...
bool	marked () const
bool	mark_toggle ()
void	status (const std::string &msg, const std::string &type="info")
bool	markCenter () const
bool	skyComponent () const
void	output (ds9writer &out) const
void	emitUpdate ()
	called for existing regions when spectral profile tool is opened...
Protected Member Functions
std::list< RegionInfo > *	generate_dds_statistics ()
	--------------------==================== from old QtRegion ====================--------------------
ImageRegion *	get_image_region (DisplayData *dd) const
const std::list< Region * > &	get_selected_regions ()
size_t	selected_region_count ()
size_t	marked_region_count ()
virtual Region *	fetch_my_region ()
virtual void	fetch_region_details (RegionTypes &type, std::vector< std::pair< int, int > > &pixel_pts, std::vector< std::pair< double, double > > &world_pts) const
std::list< RegionInfo > *	generate_dds_centers ()

Detailed Description

All regions are specified in "linear coordinates", not "pixel coordinates".

This is necessary because "linear coordinates" scale with zooming whereas "pixel coordinates" do not. Unfortunately, this means that coordinate transformation is required each time the region is drawn.

Key points:

regions are produced by a factory to permit the creation of gui specific regions

Definition at line 46 of file QtRectangle.qo.h.

Constructor & Destructor Documentation

casa::viewer::QtRectangle::~QtRectangle ( )

casa::viewer::QtRectangle::QtRectangle	(	QtRegionSourceKernel *	factory,
		WorldCanvas *	wc,
		double	blc_x,
		double	blc_y,
		double	trc_x,
		double	trc_y,
		bool	hold_signals = `false`
	)

Member Function Documentation

void casa::viewer::QtRectangle::adjustCorners	(	double	,
		double	,
		double	,
		double
	)		`[slot]`

Reimplemented from casa::viewer::Region.

AnnotationBase* casa::viewer::QtRectangle::annotation ( ) const [inline]

Reimplemented from casa::viewer::Rectangle.

Definition at line 98 of file QtRectangle.qo.h.

std::string casa::viewer::QtRectangle::centerColor ( ) const [inline]

Reimplemented from casa::viewer::QtRegion.

Definition at line 54 of file QtRectangle.qo.h.

void casa::viewer::QtRectangle::clearStatistics ( ) [inline]

Reimplemented from casa::viewer::QtRegion.

Definition at line 113 of file QtRectangle.qo.h.

void casa::viewer::QtRectangle::emitUpdate ( ) [inline]

called for existing regions when spectral profile tool is opened...

Reimplemented from casa::viewer::QtRegion.

Definition at line 138 of file QtRectangle.qo.h.

virtual Region* casa::viewer::QtRectangle::fetch_my_region ( ) [inline, protected, virtual]

Definition at line 149 of file QtRectangle.qo.h.

virtual void casa::viewer::QtRectangle::fetch_region_details	(	RegionTypes &	type,
		std::vector< std::pair< int, int > > &	pixel_pts,
		std::vector< std::pair< double, double > > &	world_pts
	)		const `[inline, protected, virtual]`

Definition at line 150 of file QtRectangle.qo.h.

std::list<RegionInfo>* casa::viewer::QtRectangle::generate_dds_centers ( ) [inline, protected, virtual]

Reimplemented from casa::viewer::Rectangle.

Definition at line 153 of file QtRectangle.qo.h.

std::list<RegionInfo>* casa::viewer::QtRectangle::generate_dds_statistics ( ) [inline, protected, virtual]

--------------------==================== from old QtRegion ====================--------------------

Reimplemented from casa::viewer::Region.

Definition at line 144 of file QtRectangle.qo.h.

ImageRegion* casa::viewer::QtRectangle::get_image_region ( DisplayData * dd ) const [inline, protected, virtual]

Implements casa::viewer::QtRegion.

Definition at line 145 of file QtRectangle.qo.h.

const std::list<Region*>& casa::viewer::QtRectangle::get_selected_regions ( ) [inline, protected, virtual]

Implements casa::viewer::Region.

Definition at line 146 of file QtRectangle.qo.h.

void casa::viewer::QtRectangle::getCoordinatesAndUnits	(	Region::Coord &	c,
		Region::Units &	x_units,
		Region::Units &	y_units,
		std::string &	width_height_units
	)		const `[inline]`

Reimplemented from casa::viewer::Region.

Definition at line 67 of file QtRectangle.qo.h.

void casa::viewer::QtRectangle::getPositionString	(	std::string &	x,
		std::string &	y,
		std::string &	angle,
		double &	bounding_width,
		double &	bounding_height,
		Region::Coord	coord = `Region::DefaultCoord`,
		Region::Units	x_units = `Region::DefaultUnits`,
		Region::Units	y_units = `Region::DefaultUnits`,
		const std::string &	bounding_units = `"rad"`
	)		const `[inline]`

Reimplemented from casa::viewer::Region.

Definition at line 69 of file QtRectangle.qo.h.

void casa::viewer::QtRectangle::invalidateCenterInfo ( ) [inline]

indicates that the center info is no longer valid

Reimplemented from casa::viewer::QtRegion.

Definition at line 111 of file QtRectangle.qo.h.

void casa::viewer::QtRectangle::linearCenter	(	double &	x,
		double &	y
	)		const `[inline]`

Reimplemented from casa::viewer::Rectangle.

Definition at line 91 of file QtRectangle.qo.h.

std::string casa::viewer::QtRectangle::lineColor ( ) const [inline]

Reimplemented from casa::viewer::QtRegion.

Definition at line 53 of file QtRectangle.qo.h.

Region::LineStyle casa::viewer::QtRectangle::lineStyle ( ) const [inline]

Reimplemented from casa::viewer::QtRegion.

Definition at line 56 of file QtRectangle.qo.h.

int casa::viewer::QtRectangle::lineWidth ( ) const [inline]

Reimplemented from casa::viewer::QtRegion.

Definition at line 55 of file QtRectangle.qo.h.

void casa::viewer::QtRectangle::mark ( bool set = true ) [inline]

functions added with the introduction of RegionToolManager and the unified selection and manipulation of the various region types...

Reimplemented from casa::viewer::QtRegion.

Definition at line 126 of file QtRectangle.qo.h.

bool casa::viewer::QtRectangle::mark_toggle ( ) [inline]

Reimplemented from casa::viewer::QtRegion.

Definition at line 128 of file QtRectangle.qo.h.

bool casa::viewer::QtRectangle::markCenter ( ) const [inline]

Reimplemented from casa::viewer::QtRegion.

Definition at line 132 of file QtRectangle.qo.h.

bool casa::viewer::QtRectangle::marked ( ) const [inline]

Reimplemented from casa::viewer::QtRegion.

Definition at line 127 of file QtRectangle.qo.h.

size_t casa::viewer::QtRectangle::marked_region_count ( ) [inline, protected]

Reimplemented from casa::viewer::QtRegion.

Definition at line 148 of file QtRectangle.qo.h.

const std::string casa::viewer::QtRectangle::name ( ) const [inline]

Reimplemented from casa::viewer::QtRegion.

Definition at line 51 of file QtRectangle.qo.h.

int casa::viewer::QtRectangle::numFrames ( ) const [inline]

Reimplemented from casa::viewer::QtRegion.

Definition at line 86 of file QtRectangle.qo.h.

void casa::viewer::QtRectangle::output ( ds9writer & out ) const [virtual]

Implements casa::viewer::QtRegion.

void casa::viewer::QtRectangle::pixelCenter	(	double &	,
		double &
	)		const `[inline, virtual]`

DISPLAY_PURE_VIRTUAL(region::linearCenter,);.

Implements casa::viewer::QtRegion.

Definition at line 92 of file QtRectangle.qo.h.

void casa::viewer::QtRectangle::refresh ( ) [inline]

qt-event -> QtRegion -> QtRectangle -> Region::refresh( )

Reimplemented from casa::viewer::Region.

Definition at line 97 of file QtRectangle.qo.h.

bool casa::viewer::QtRectangle::regionVisible ( ) const [inline]

Reimplemented from casa::viewer::Region.

Definition at line 90 of file QtRectangle.qo.h.

bool casa::viewer::QtRectangle::resizeX	(	const std::string &	x,
		const std::string &	x_units,
		const std::string &	coordsys
	)		`[inline, virtual]`

Implements casa::viewer::QtRegion.

Definition at line 81 of file QtRectangle.qo.h.

bool casa::viewer::QtRectangle::resizeY	(	const std::string &	y,
		const std::string &	y_units,
		const std::string &	coordsys
	)		`[inline, virtual]`

Implements casa::viewer::QtRegion.

Definition at line 83 of file QtRectangle.qo.h.

size_t casa::viewer::QtRectangle::selected_region_count ( ) [inline, protected]

Reimplemented from casa::viewer::QtRegion.

Definition at line 147 of file QtRectangle.qo.h.

void casa::viewer::QtRectangle::selectedInCanvas ( ) [inline, virtual]

indicates that the user has selected this rectangle...

Reimplemented from casa::viewer::Region.

Definition at line 101 of file QtRectangle.qo.h.

void casa::viewer::QtRectangle::setAnnotation ( bool ann ) [inline, virtual]

Reimplemented from casa::viewer::QtRegion.

Definition at line 122 of file QtRectangle.qo.h.

void casa::viewer::QtRectangle::setFont	(	const std::string &	font = `""`,
		int	font_size = `-1`,
		int	font_style = `0`,
		const std::string &	font_color = `""`
	)		`[inline, virtual]`

Reimplemented from casa::viewer::QtRegion.

Definition at line 118 of file QtRectangle.qo.h.

void casa::viewer::QtRectangle::setLabel ( const std::string & l ) [inline, virtual]

set attributes when loading a casa region text file...

Reimplemented from casa::viewer::QtRegion.

Definition at line 115 of file QtRectangle.qo.h.

void casa::viewer::QtRectangle::setLabelDelta ( const std::vector< int > & delta ) [inline]

Reimplemented from casa::viewer::QtRegion.

Definition at line 117 of file QtRectangle.qo.h.

void casa::viewer::QtRectangle::setLabelPosition ( TextPosition pos ) [inline, virtual]

Implements casa::viewer::Region.

Definition at line 116 of file QtRectangle.qo.h.

void casa::viewer::QtRectangle::setLine	(	const std::string &	line_color = `""`,
		Region::LineStyle	line_style = `SolidLine`,
		unsigned int	line_width = `1`
	)		`[inline, virtual]`
